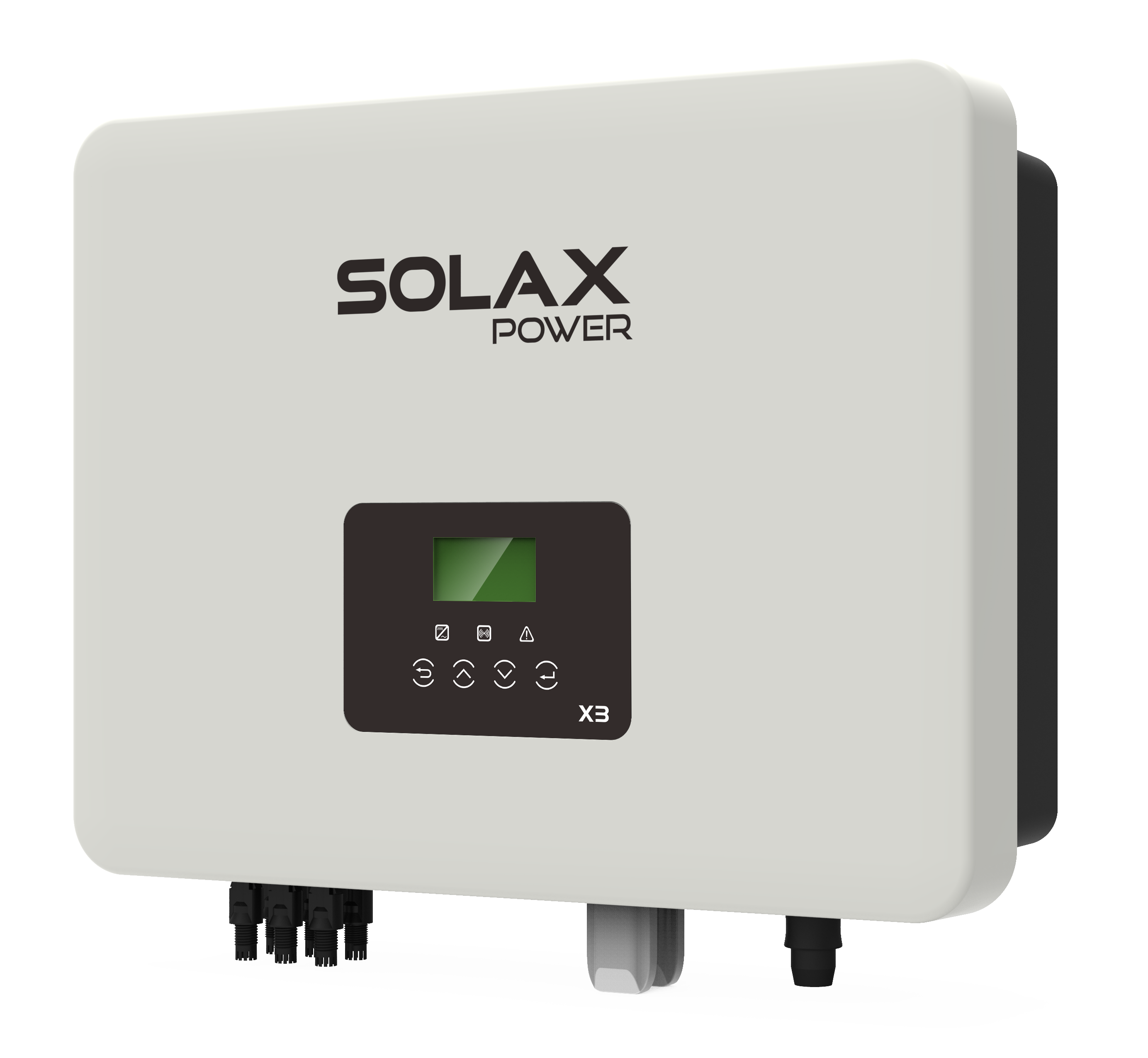

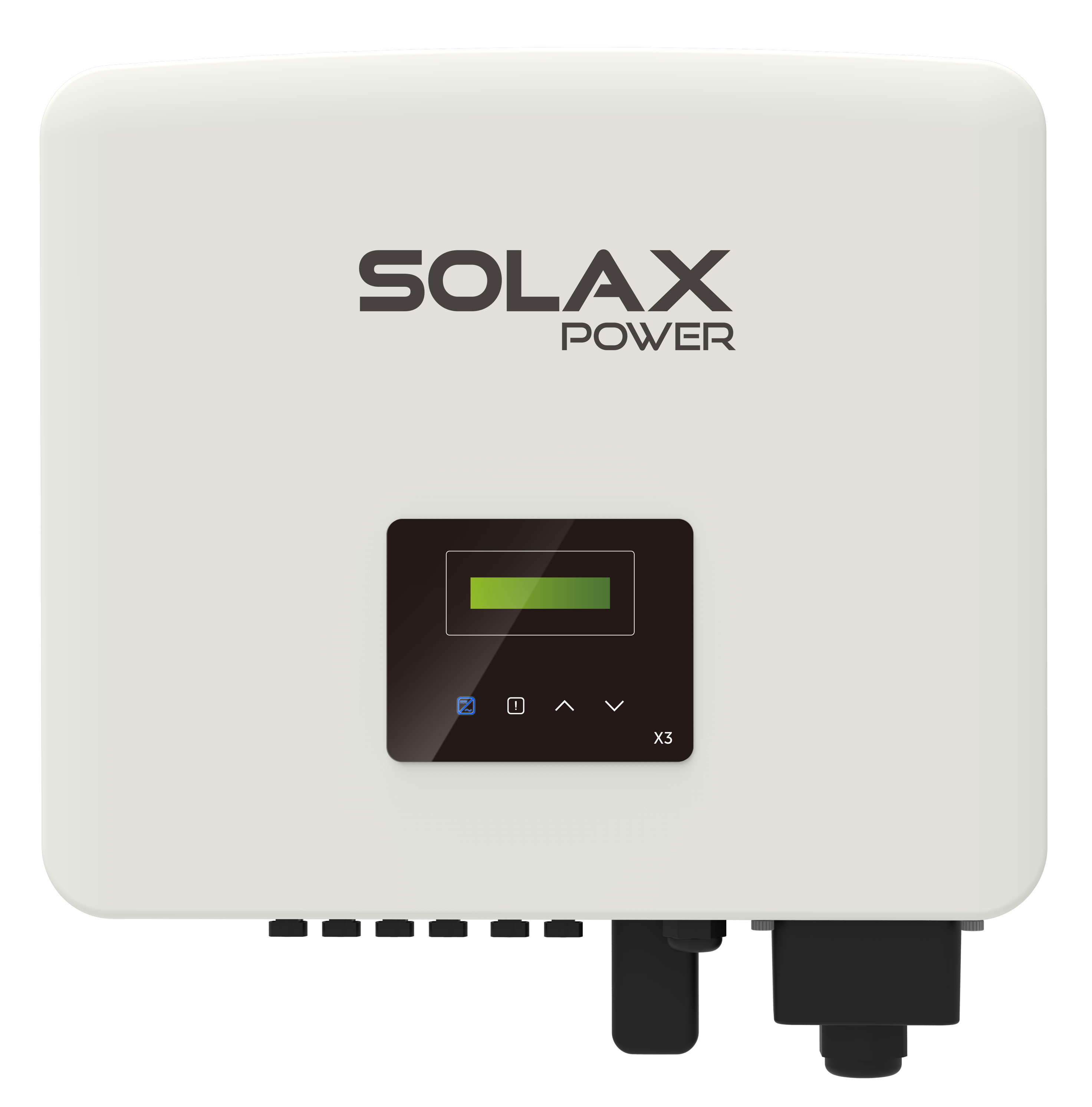

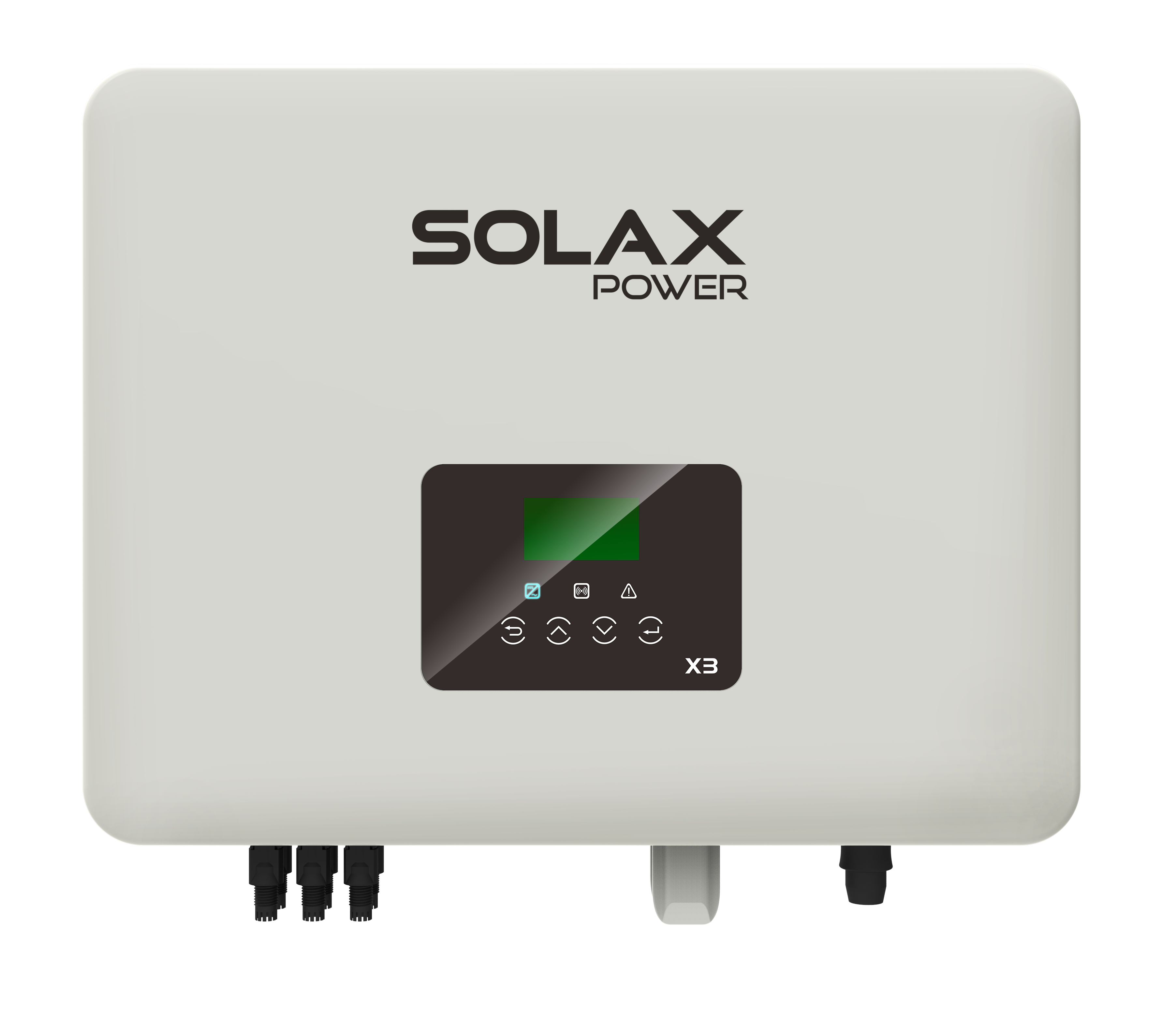

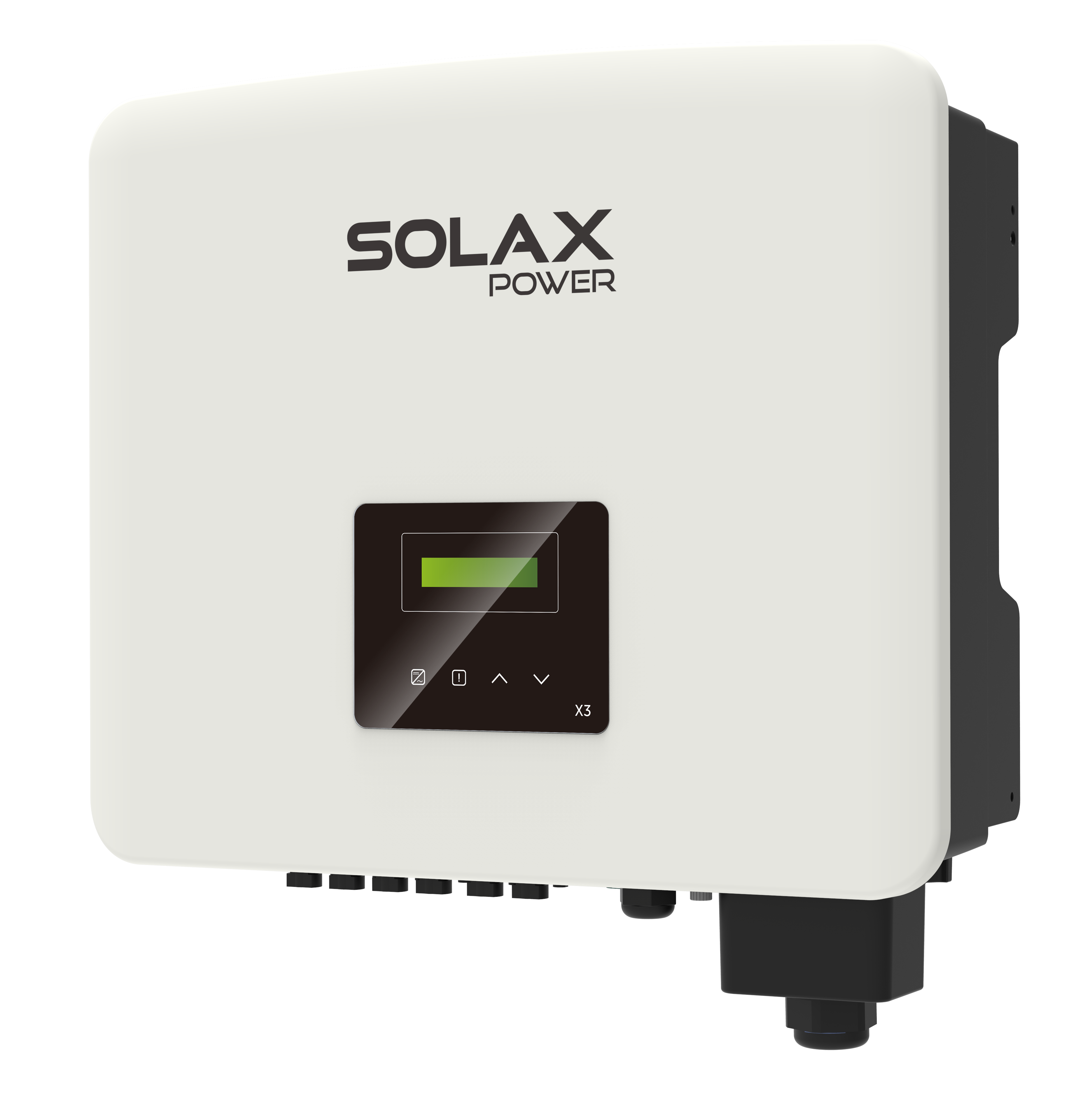

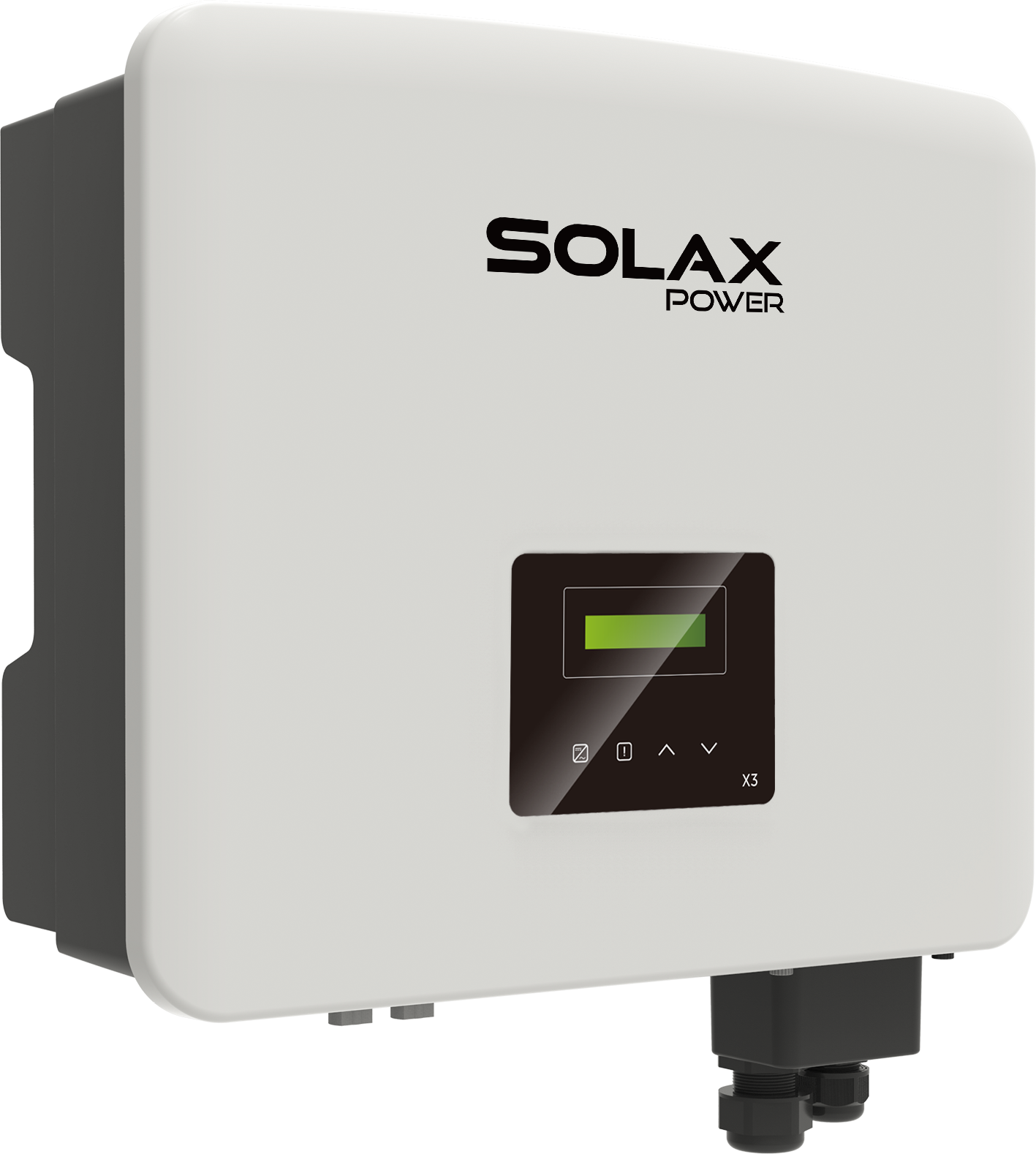

Three phase ඉන්වර්ටර්

X3-PRO G2

8kW / 10kW / 12kW / 15kW / 17kW / 20kW / 25kW / 30kW

X3-PRO G2 ඉන්වර්ටර් (8 Kw-30 kW) නිවෙස් සහ වාණිජ භාවිතය සඳහා හැඩගැස්විය හැකි බල විකල්ප ලබා දෙයි. මෙය ඇතුළත් අපනයන බල පාලනයක් සහ තාප පම්පය සහ EV ආරෝපකය වැනි උපාංග සඳහා බුද්ධිමත් භාර කළමනාකරණයක් ලබා දේ. IP66 ආරක්ෂාව සහ උස බල ඝනත්වය සමඟ, එය ඕනෑම පරිසරයක විශ්වාසදායක ක්රියාකාරිත්වය සඳහා නිර්මාණය කර ඇත.

දත්ත බාගත කිරීම

නිෂ්පාදන වාසිය

98.5% කාර්යක්ෂමතාවයක් දක්වා ලබාදෙමින්, X3-PRO G2 150% DC oversize සහ 110% AC overload සහය දක්වයි. එක් MPP ට්රැකර්කට 32A, ගෝලීය MPP සෙවීම සහ පුළුල් MPPT වෝල්ටීයතාව පරාසයකින්, අඩු ආලෝකය සහ විචල්ය තත්ත්වයන් යටතේ පවා උපරිම ශක්ති අස්වීමක් ලබා දෙයි.

අප අමතන්න

Assured Safety

Type II SPD on AC & DC side
AFCI support (optional)*

Flexible Adaptability

Built-in export power control function
Ultra-high power density

Intelligent Design

IP66 ingress protection
24h monitoring (WiFi / LAN / 4G)
Smart loads management (e.g. heat pump, smart EV charger)

High Efficiency

Up to 98.5% efficiency
32A per MPP tracker
150% DC oversizing & 110% AC overloading output
Built-in global MPP scan
Low start up voltage & ultra-wide MPPT range

නිෂ්පාදන පරාමිතීන්

X3-PRO-8K-G2
X3-PRO-10K-G2
X3-PRO-12K-G2
X3-PRO-15K-G2
X3-PRO-17K-G2
X3-PRO-20K-G2
X3-PRO-25K-G2
X3-PRO-30K-G2

X3-PRO-8K-G2
- PV INPUT

  Max. recommended PV array power
  12.0 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  8kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 24.5 kg
X3-PRO-10K-G2
- PV INPUT

  Max. recommended PV array power
  15.0 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  10kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 24.5 kg
X3-PRO-12K-G2
- PV INPUT

  Max. recommended PV array power
  18.0 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  12kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 24.5 kg
X3-PRO-15K-G2
- PV INPUT

  Max. recommended PV array power
  22.5 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  15kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 26.0 kg
X3-PRO-17K-G2
- PV INPUT

  Max. recommended PV array power
  25.5 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  17kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 26.0 kg
X3-PRO-20K-G2
- PV INPUT

  Max. recommended PV array power
  30.0 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  2/(2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  20kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 26.0 kg
X3-PRO-25K-G2
- PV INPUT

  Max. recommended PV array power
  37.5 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  3/(2/2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  25kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 28.0 kg
X3-PRO-30K-G2
- PV INPUT

  Max. recommended PV array power
  45.0 kWp
  MPPT voltage range
  160 ~ 980 V
  No. of MPP trackers / strings per MPP tracker
  3/(2/2/2)
  Max. input current per MPPT
  32A
- AC OUTPUT

  Rated output power
  30kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- GENERAL

  Dimensions (W /H / D) 482 × 417 × 186 mm
  Net Weight 28.0 kg
