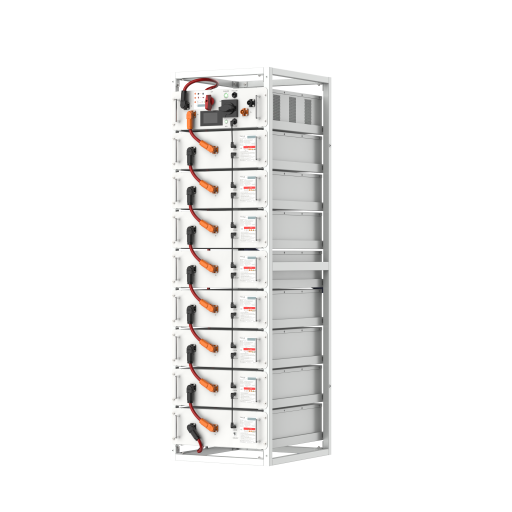

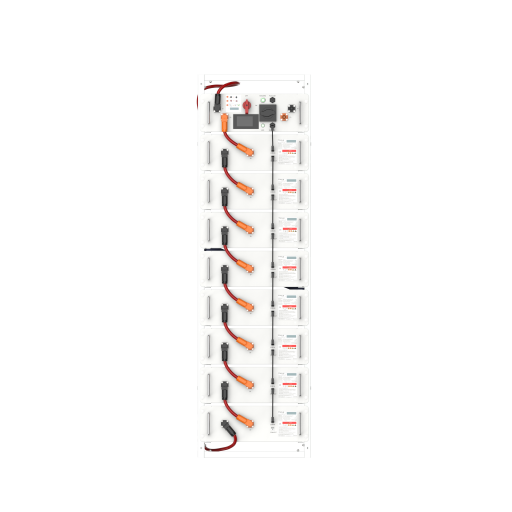

C & I බැටරි
TSYS-HR76
-
7.68 kWh | LFP 150Ah
නිෂ්පාදන වාසිය
TSYS-HR76 නම්‍යශීලී බව සහ විශ්වාසනීය ක්‍රියාකාරිත්වය සඳහා ගොඩනගා ඇති අතර, ආරෝපණය සඳහා 0°C සිට 55°C දක්වා සහ විසර්ජනය සඳහා -20°C සිට 55°C දක්වා මෙහෙයුම් උෂ්ණත්ව පරාසයක් ලබා දෙයි. එහි පරිමාණය කළ හැකි සැලසුම මඟින් කට්ටලයකට මොඩියුල 5 සිට 14 දක්වා ඉඩ ලබා දෙන අතර, නාමික වෝල්ටීයතා පරාසයක් 256.0 V සිට 716.8 V දක්වා ලබා දෙයි. ශ්‍රේණිගත බලය 23.0 kW සිට 64.5 kW දක්වා විහිදෙන අතර, එය විවිධ වාණිජ හා කාර්මික බලශක්ති ගබඩා යෙදුම් හරහා අනුවර්තනය කළ හැකි කාර්ය සාධනයක් සහතික කරයි.
Efficiency
Delivers sustained 1C performance
Embedded installation design for rapid deployment
Modular architecture for streamlined maintenance
Intelligence
Automated charge/discharge management
Multi-level protection: overcharge, over-discharge, thermal extremes
Reliability
High-safety LFP battery
Extended cycle life for long-term performance
Flexible Configuration
Scalable battery cluster (5–14 modules per set)
Remote firmware upgrade support
Full compatibility with SolaX inverters
නිෂ්පාදන පරාමිතීන්
-
T-HR38.4 / T-HR38.4P-
SYSTEM SPECIFICATION
Module quantities 5 Nominal energy 38.4 kWh Nominal voltage 256.0 V Max. charge / discharge current 150 A Rated power 23.0 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR46.0 / T-HR46.0P
-
SYSTEM SPECIFICATION
Module quantities 6 Nominal energy 46.0 kWh Nominal voltage 307.2 V Max. charge / discharge current 150 A Rated power 27.6 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR53.7 / T-HR53.7P
-
SYSTEM SPECIFICATION
Module quantities 7 Nominal energy 53.7 kWh Nominal voltage 358.4 V Max. charge / discharge current 150 A Rated power 32.2 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR61.4 / T-HR61.4P
-
SYSTEM SPECIFICATION
Module quantities 8 Nominal energy 61.4 kWh Nominal voltage 409.6 V Max. charge / discharge current 150 A Rated power 36.8 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR69.2 / T-HR69.2P
-
SYSTEM SPECIFICATION
Module quantities 9 Nominal energy 69.1 kWh Nominal voltage 460.8 V Max. charge / discharge current 150 A Rated power 41.4 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR76.8 / T-HR76.8P
-
SYSTEM SPECIFICATION
Module quantities 10 Nominal energy 76.8 kWh Nominal voltage 512.0 V Max. charge / discharge current 150 A Rated power 46.0 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR84.4 / T-HR84.4P
-
SYSTEM SPECIFICATION
Module quantities 11 Nominal energy 84.4 kWh Nominal voltage 563.2 V Max. charge / discharge current 150 A Rated power 50.6 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR92.1 / T-HR92.1P
-
SYSTEM SPECIFICATION
Module quantities 12 Nominal energy 92.1 kWh Nominal voltage 614.4 V Max. charge / discharge current 150 A Rated power 55.2 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR99.8 / T-HR99.8P
-
SYSTEM SPECIFICATION
Module quantities 13 Nominal energy 99.8 kWh Nominal voltage 665.6 V Max. charge / discharge current 150 A Rated power 59.8 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR107.5 / T-HR107.5P
-
SYSTEM SPECIFICATION
Module quantities 14 Nominal energy 107.5 kWh Nominal voltage 716.8 V Max. charge / discharge current 150 A Rated power 64.5 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
