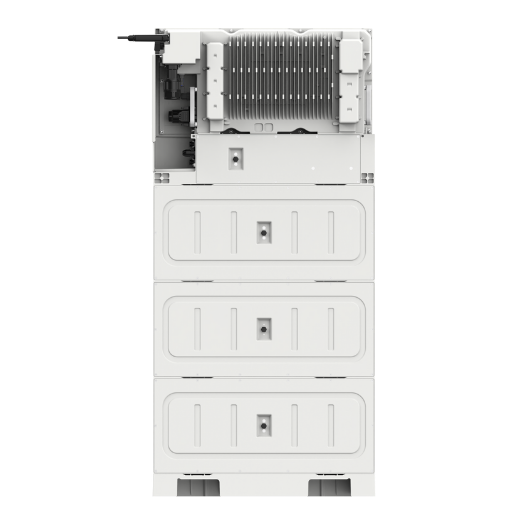

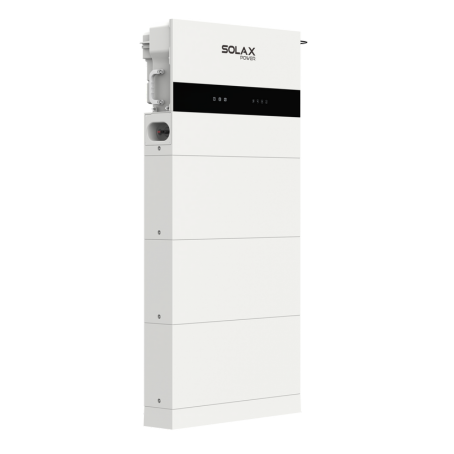

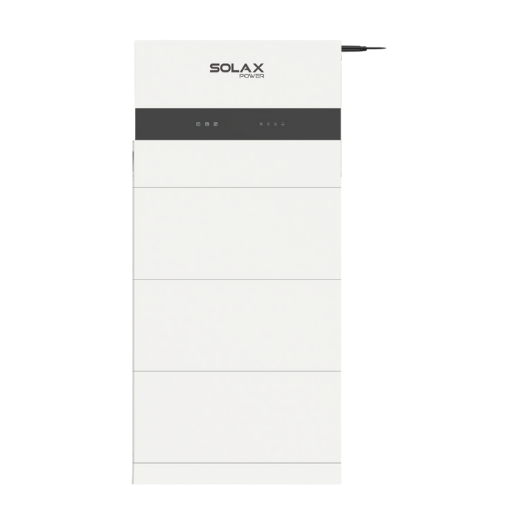

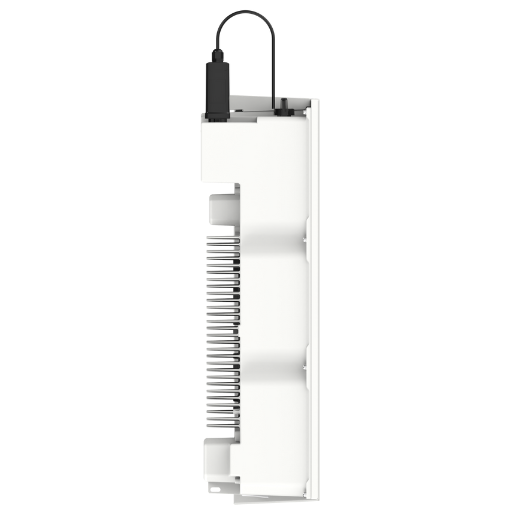

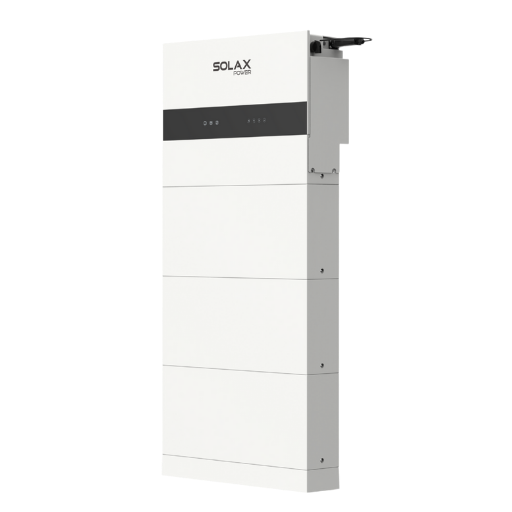

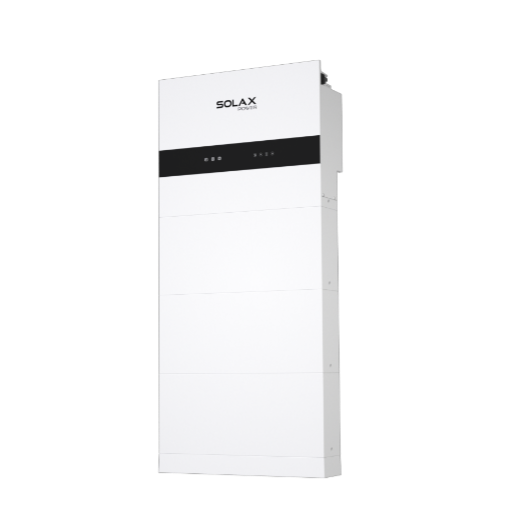

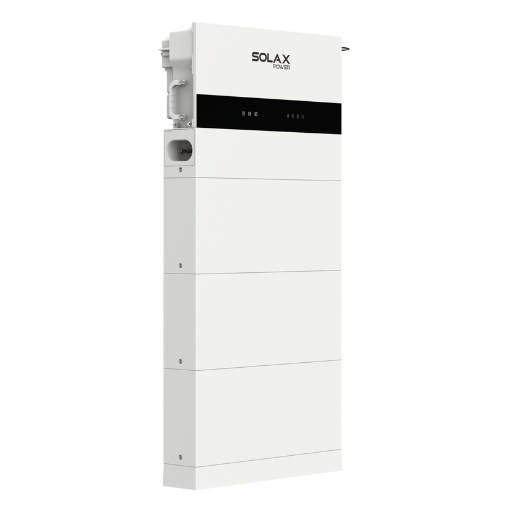

ශක්ති ගබඩා පද්ධතිය
X3-IES
-
4K / 6K / 8K / 10K / 12K / 15K
ඊළඟ පරම්පරාවේ ශක්ති පද්ධතිය යනු සෑම දේම එක් කළ, plug-and-play සැලැස්මක් වන අතර, ස්ථාපනය පහසු කරයි. බුද්ධිමත් භාර කළමනාකරණය සහ මයික්රෝග්රිඩ් සැලසුම් සඳහා සහය සමඟ, මෙය නවීන නිවෙස් සහ ශක්ති ජාලවල සංවර්ධනය වන අවශ්යතා සපුරාලීමට නිර්මාණය කර ඇත.
-
වීඩියෝව නරඹන්න
නිෂ්පාදන වාසිය
50A ආරෝපණ/ප්රතිප්රවාහ ධාරාව සහ 200% PV ආදාන අධිප්රමාණනය මගින් ශක්ති ඵලදායීතාව උපරිම කරමින්, සූර්ය ජනනය සහ පරිභෝජනය සඳහා AI මත පදනම් වූ අනාවැකි පද්ධතියක් භාවිත කරයි. සංකල්පිත විදුලි ශක්ති මධ්‍යස්ථානය (VPP) ජාල සමඟ පුළුල් නියමිත ප්රොටොකෝල වලට අනුකූලව පහසුවෙන් සම්බන්ධ කරගත හැකි අතර, වඩාත් කාර්යක්ෂම සූර්ය ශක්ති ගබඩා කිරීමක් ලබා දේ.
Smart Management
Al ready, forecasting solar generation and home consumption forsmart energy management strategy control*
VPP ready with a variety of compatibility(OpenADR, IEEE2030.5,FCAS, AP|)**
Smart loads management (e.g., heat pump, smart EV charger)
Micro-grid support for real-time grid/off-grid balancing
Wireless meter compatibility
Global MPP scan for optimal energy harvest
Assured Reliability
lP66 ingress protection
Type ll SPD on AC&DC side
AFCl protection (optional)
Up to 200% EPS output for 10s
UPS-level switchover time <10ms
High Performance
Max. 50A charge/discharge current
200% oversizing and 200% PV input power
Low start-up voltage for longer operation
Cycle life > 6000 cycles
Flexible Adaptability
All-in-one, plug-and-play design
Max. 20A DC input current for highpower solar panel
නිෂ්පාදන පරාමිතීන්
-
X3-IES-4K-
PV INPUT
Max. recommended PV array power
8 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(1/1)
Max. input current per MPPT
20 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
4000 W
Rated AC voltage
3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
4 KVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Max Charge / Discharge current
50 A
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Net Weight 37 kg
-
-
X3-IES-5K
-
PV INPUT
Max. recommended PV array power
10 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(1/1)
Max. input current per MPPT
20 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
5000 W
Rated AC voltage
3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
5 KVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Max Charge / Discharge current
50 A
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Net Weight 37 kg
-
-
X3-IES-6K
-
PV INPUT
Max. recommended PV array power
12 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(1/1)
Max. input current per MPPT
20 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
6000 W
Rated AC voltage
3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
6 KVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Max Charge / Discharge current
50 A
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Net Weight 37 kg
-
-
X3-IES-8K
-
PV INPUT
Max. recommended PV array power
16 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(2/1)
Max. input current per MPPT
32 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
8000 W
Rated AC voltage
3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
8 KVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Max Charge / Discharge current
50 A
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Net Weight 37 kg
-
-
X3-IES-10K
-
PV INPUT
Max. recommended PV array power
20 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(2/1)
Max. input current per MPPT
32 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
10000 W
(AS4777 9999)
Rated AC voltage
3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
10 KVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Max Charge / Discharge current
50 A
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Net Weight 37 kg
-
-
X3-IES-12K
-
PV INPUT
Max. recommended PV array power
24 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(2/1)
Max. input current per MPPT
32 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
12000 W
Rated AC voltage
3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
12 KVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Max Charge / Discharge current
50 A
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Net Weight 37 kg
-
-
X3-IES-15K
-
PV INPUT
Max. recommended PV array power
30 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(2/1)
Max. input current per MPPT
32 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
15000 W
Rated AC voltage
3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
15 KVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Max Charge / Discharge current
50 A
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Net Weight 37 kg
-
