නේවාසික ESS

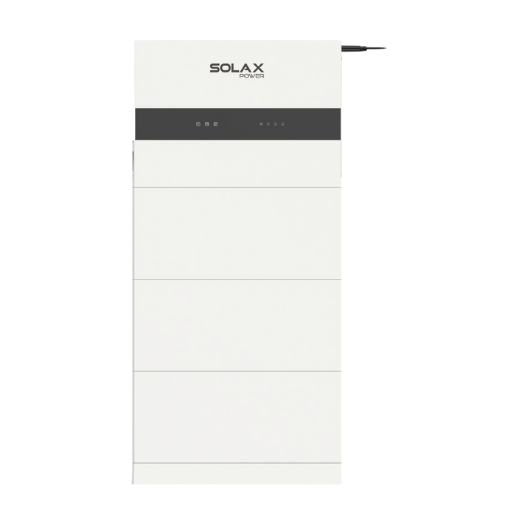

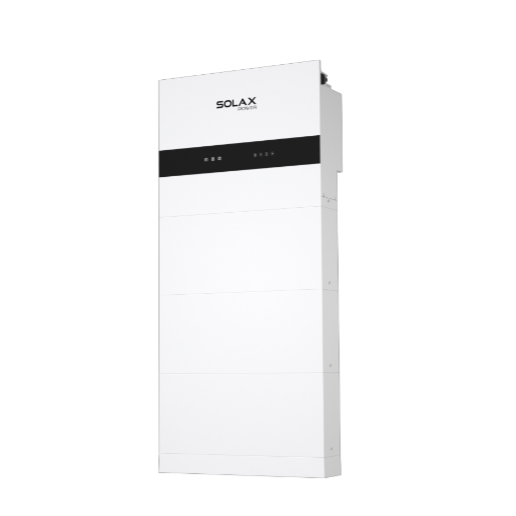

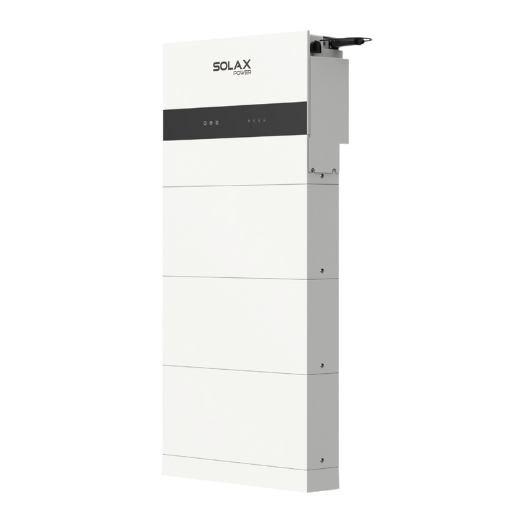

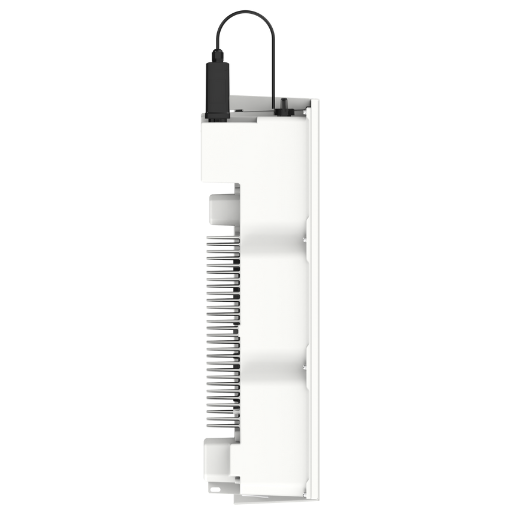

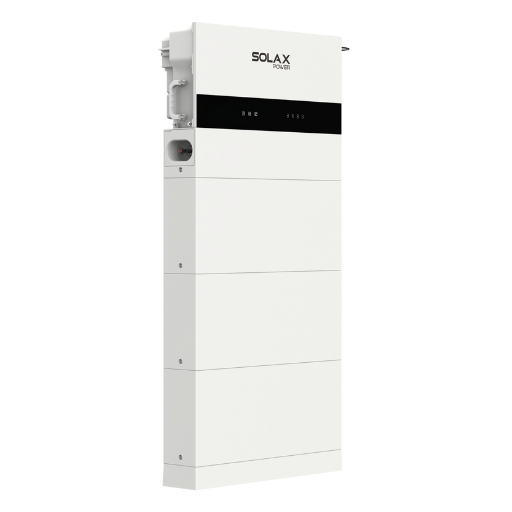

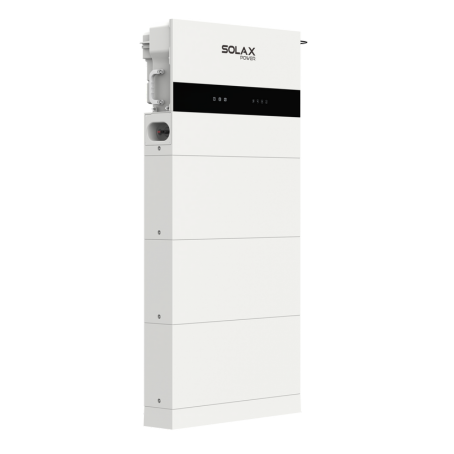

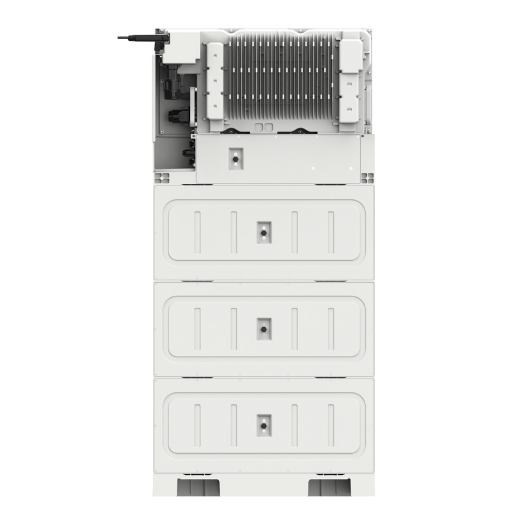

X1-IES

2.5K / 3.7K / 4.6K / 5K / 6K / 8K

X1-IES යනු නවීන ශක්ති පද්ධතිය සඳහා ඉංජිනේරුකරණය කළ, සෑම දේම එක් කළ plug-and-play සැලැස්මක් වන අතර, ස්ථාපනය පහසු කරමින් උසස් අනුකූලතාවයක් ලබා දෙයි. EV ආරෝපකය සහ තාප පම්පය වැනි බුද්ධිමත් භාර සඳහා සහ මයික්රෝග්රිඩ් සැලසුම් සඳහා සහය දක්වමින්, නිවෙස් සූර්ය සකස්කිරීම් සඳහා පරිපූර්ණ විසඳුමක් වේ.

වීඩියෝව නරඹන්න
දත්ත බාගත කිරීම

නිෂ්පාදන වාසිය

X1-IES මගින් 200% PV ආදානය සහ EPS ප්රතිදානය තත්පර 10ක් සඳහා ලබා දී ඇති අතර, peak loading අවස්ථාවලදී උපරිම ශක්ති භාවිතය ලබා දේ. AI සූදානම්භාවය සහ VPP ඒකාබද්ධ කිරීම් හැකියාවන් ඔබේ ශක්ති පද්ධතිය අනාගතයට සූදානම් කරයි, උපරිම පරිමාණ ගත හැකියාව ලබා දේ.

අප අමතන්න

Assured Reliability

IP66 protection degree
Type II SPD on AC&DC side
AFCI protection (optional)
UPS-level switchover time<10ms

Smart Management

Al ready, forecasting solar generation and home consumption for
smart energy management strategy control*
VPP ready with a variety of compatibility(OpenADR, IEEE2030.5, FCAS, API)**
Smart loads management (e.g., heat pump, smart EV charger)
Micro-grid support for real-time grid/off-grid balancing
Wireless meter compatibility
Global MPP scan for optimal energy harvest

Flexible Adaptability

All-in-one, plug-and-play design
Max. 20A DC input current for high power solar panel

High Performance

Max. 50A charge/discharge current
200% oversizing and 200% PV input power
Up to 200% EPS output for 10s
Low start-up voltage for longer operation
Cycle life > 6000 times

අප අමතන්න

X1-IES-2.5K
X1-IES-3K
X1-IES-3.7K
X1-IES-5K
X1-IES-6K
X1-IES-8K

X1-IES-2.5K
- PV INPUT

  Max. recommended PV array power
  5.0 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  2500 W
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  2500 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.2 kg
X1-IES-3K
- PV INPUT

  Max. recommended PV array power
  6.0 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  3000 W
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  3000 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.2 kg
X1-IES-3.7K
- PV INPUT

  Max. recommended PV array power
  7.4 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  3680 W
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  3680 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.2 kg
X1-IES-5K
- PV INPUT

  Max. recommended PV array power
  10.0 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  3/(1/1/1)
  Max. input current per MPPT
  20A/20A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  5000 W
  (4600 for VDE41054999 for AS4777)
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  5000 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.4 kg
X1-IES-6K
- PV INPUT

  Max. recommended PV array power
  12.0 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  3/(1/1/1)
  Max. input current per MPPT
  20 A/20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  6000 W
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  6000 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.4 kg
X1-IES-8K
- PV INPUT

  Max. recommended PV array power
  16.0 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  3/(1/1/1)
  Max. input current per MPPT
  20 A/20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  8000 W
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  8000 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.4 kg
