නේවාසික බැටරි

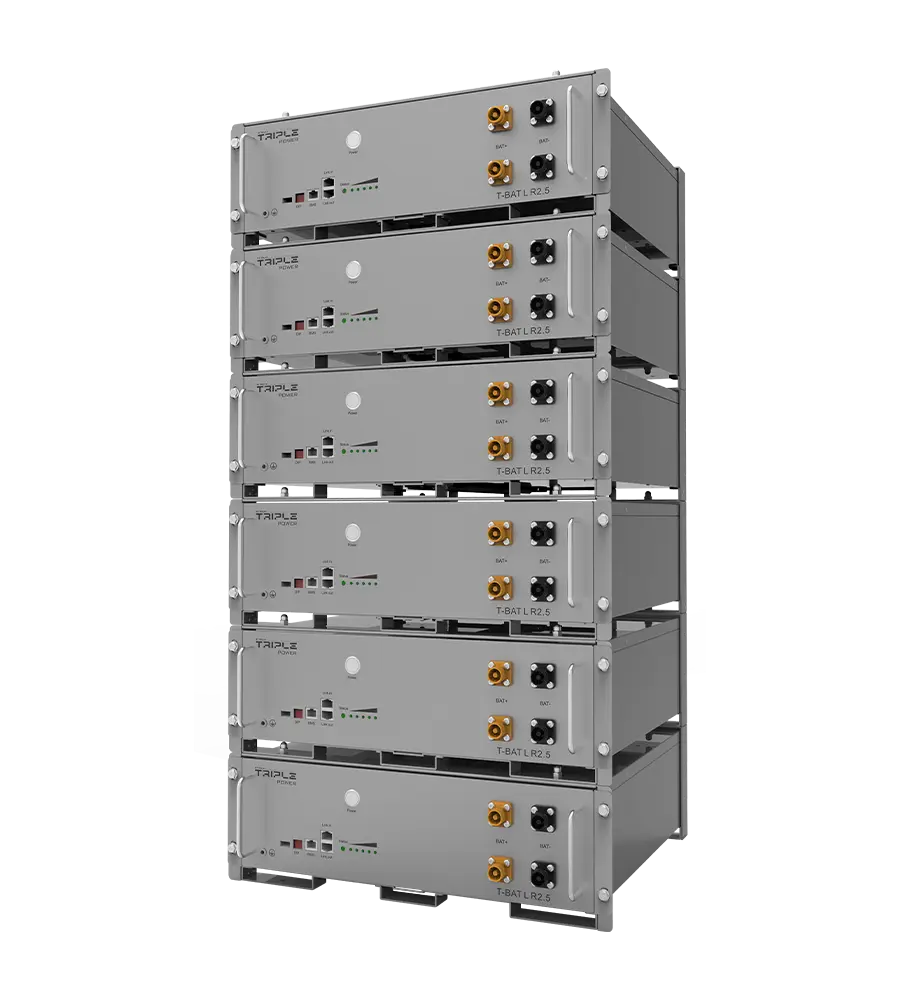

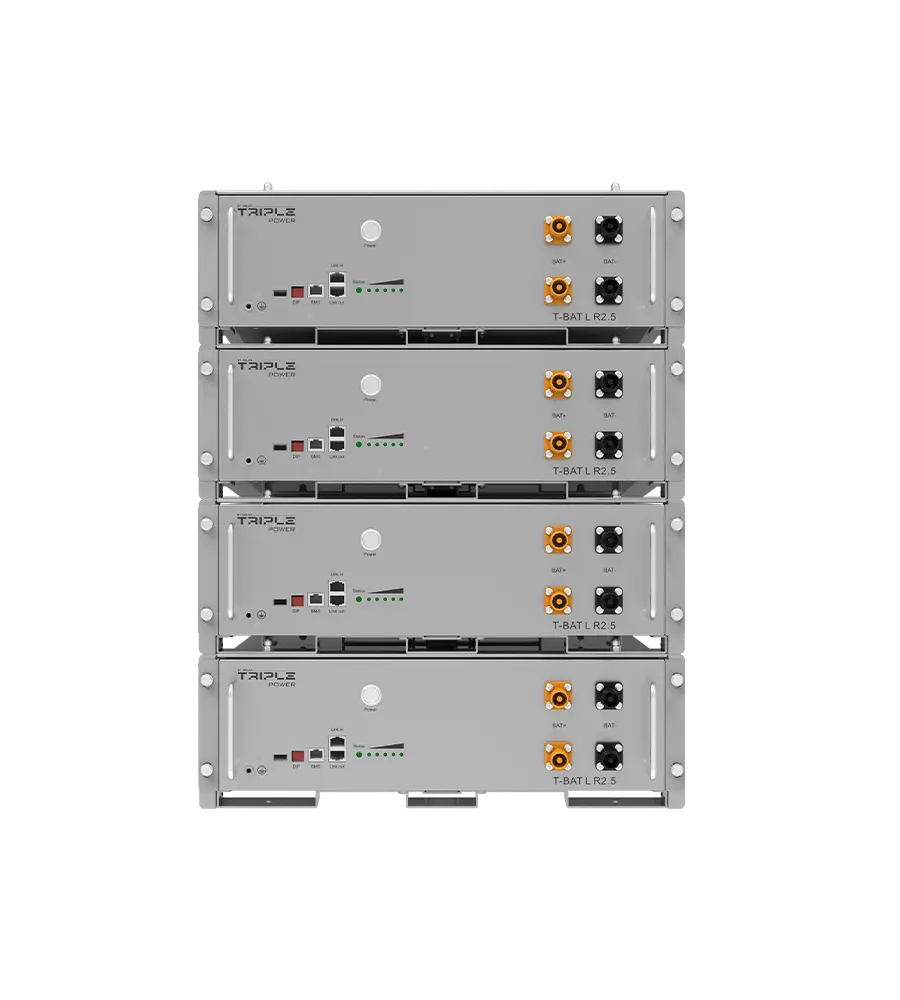

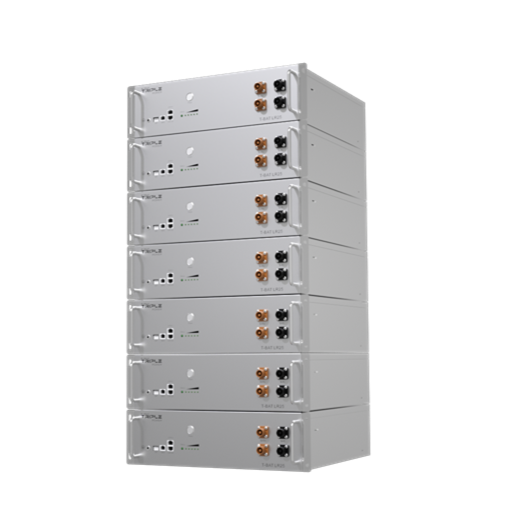

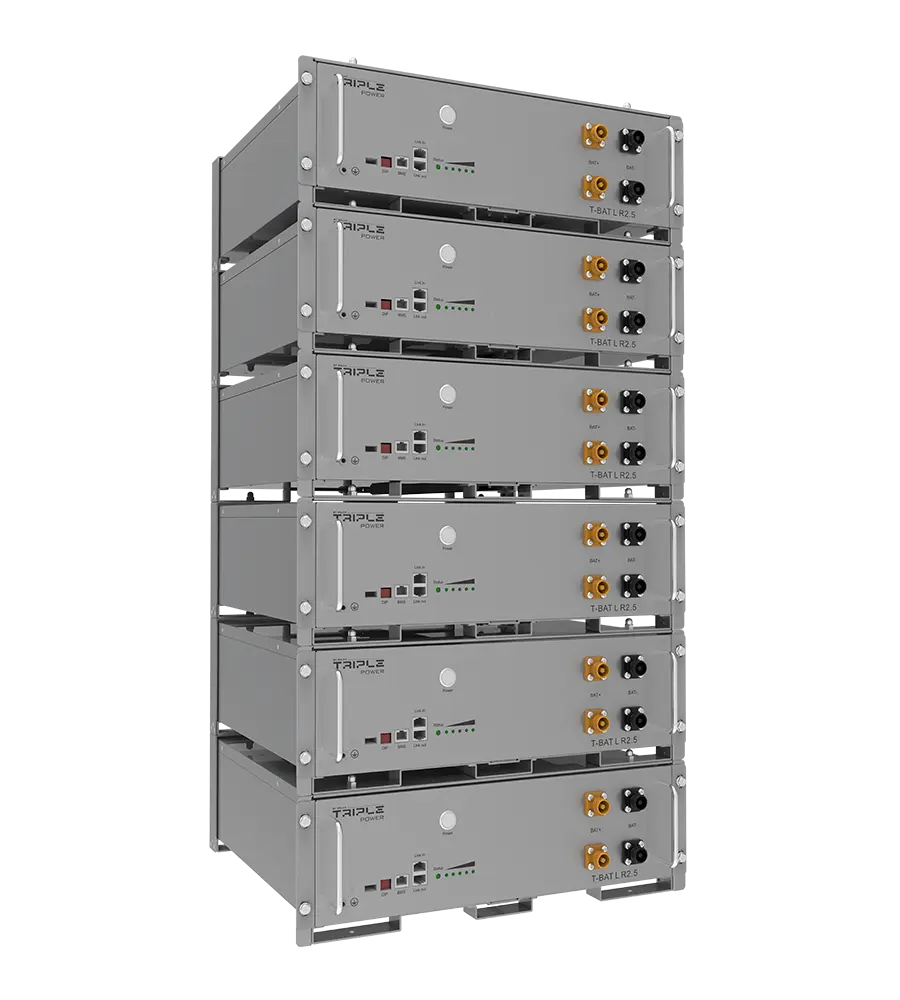

T-BAT-SYS-LV-R36
-
3.6 kWh-58.8 kWh
SolaX විසින් නිපදවන T-BAT-SYS-LV R36 බැටරිය LFP තාක්‍ෂණයෙන් යුක්ත වන අතර 3.6 kWh සිට 58.8 kWh දක්වා සීරුමාරු ධාරිතාවක් ලබා දේ. මෙම බැටරිය X1 HYBRID LV ඉන්වර්ටර් සමඟ පරිපූර්ණව ගැළපේ, නිවෙස් සඳහා ශක්ති අවශ්යතා සඳහා සීරුමාරු විසඳුමක් වන අතර, ස්ථාපනය සහ නඩත්තු කිරීමද පහසුය.
-
වීඩියෝව නරඹන්න
නිෂ්පාදන වාසිය
SolaX T-BAT-SYS-LV R36 බැටරිය සයිකල් 6000 ඉක්මවමින් ඉහළ කාර්ය සාධනයක්, කාර්යක්ෂම ශක්ති පරිවර්තනයක් සහ උසස් ධාරිතාව භාවිතයක් ලබා දේ. එහි බුද්ධිමත් කළමනාකරණය පද්ධතිය දුරස්ථ නිරීක්ෂණය සහ දෝෂ විශ්ලේෂණය සඳහා සහය දක්වයි, නඩත්තු කිරීම පහසු කරයි. හැඩගැස්විය හැකි සවිකිරීමේ හැකියාව නිසා, මෙය බිත්ති සවිකිරීම හෝ කැබිනට් ස්ථාපනය සඳහා වේගවත්ව භාවිත කළ හැකි අතර, ශක්ති අවශ්යතා වර්ධනයට අනුව පහසුවෙන් විශාල කළ හැක.
Assured Reliability
LiFePO4 battery cell & high-performance processors
No toxic heavy metals or caustic materials
Soft start to protect BAT and INV from a sudden surge
High Performance
Long cycle life > 6000 times
High capacity utilization
Efficient energy transfer
Smart Management
Remote fault diagnosis, upgrade and maintenance
Flexible Adaptability
Wall quick bracket, or cabinet mounting optional
Easy to scale up
නිෂ්පාදන පරාමිතීන්
-
T-BAT LR3.6-
SYSTEM DATA
Number of modules 1 Module Nominal capacity 3.6 kWh Max.output current 50 A Peak discharge current 60 A (60 s)
100 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR7.2
-
SYSTEM DATA
Number of modules 2 Module Nominal capacity 7.3 kWh Max.output current 85 A Peak discharge current 120 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR10.8
-
SYSTEM DATA
Number of modules 3 Modules Nominal capacity 11.0 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR14.4
-
SYSTEM DATA
Number of modules 4 Modules Nominal capacity 14.7 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR18.0
-
SYSTEM DATA
Number of modules 5 Modules Nominal capacity 18.4 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR21.6
-
SYSTEM DATA
Number of modules 6 Modules Nominal capacity 22.0 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR25.2
-
SYSTEM DATA
Number of modules 7 Modules Nominal capacity 25.7 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR28.8
-
SYSTEM DATA
Number of modules 8 Module Nominal capacity 29.4 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR32.4
-
SYSTEM DATA
Number of modules 9 Modules Nominal capacity 33.1 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR36.0
-
SYSTEM DATA
Number of modules 10 Modules Nominal capacity 36.8 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR39.6
-
SYSTEM DATA
Number of modules 11Modules Nominal capacity 40.4 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR43.2
-
SYSTEM DATA
Number of modules 12 Modules Nominal capacity 44.1 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR46.8
-
SYSTEM DATA
Number of modules 13 Modules Nominal capacity 47.8 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR50.4
-
SYSTEM DATA
Number of modules 14 Modules Nominal capacity 51.5 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR54.0
-
SYSTEM DATA
Number of modules 15 Modules Nominal capacity 55.2 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
-
T-BAT LR57.6
-
SYSTEM DATA
Number of modules 16 Modules Nominal capacity 58.8 kWh Max.output current 120 A Peak discharge current 150 A (60 s)
200 A (15 s)
-
GENERAL
Nominal voltage 51.2 V T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm T-BAT L3.6 Weigh 33 kg Battery type Lithium iron phosphate IP rating of enclosure IP20
-
