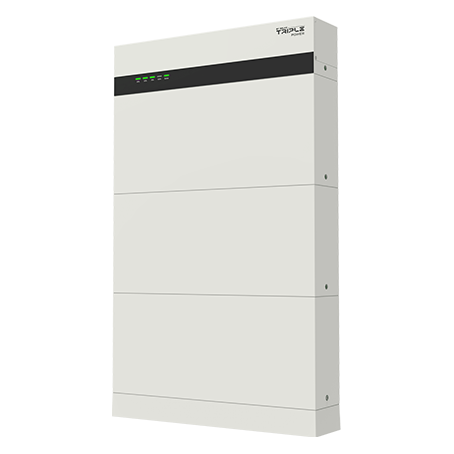

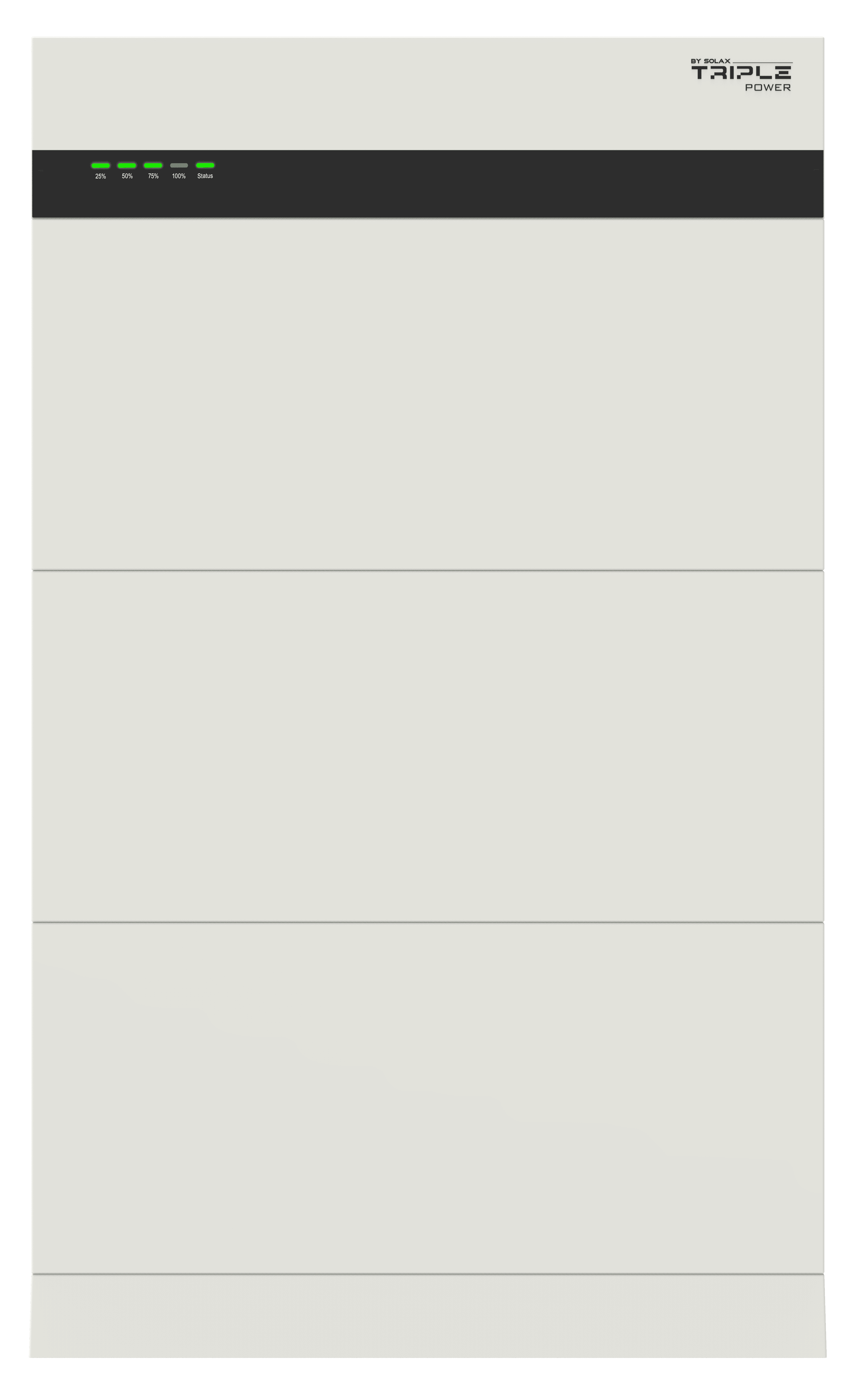

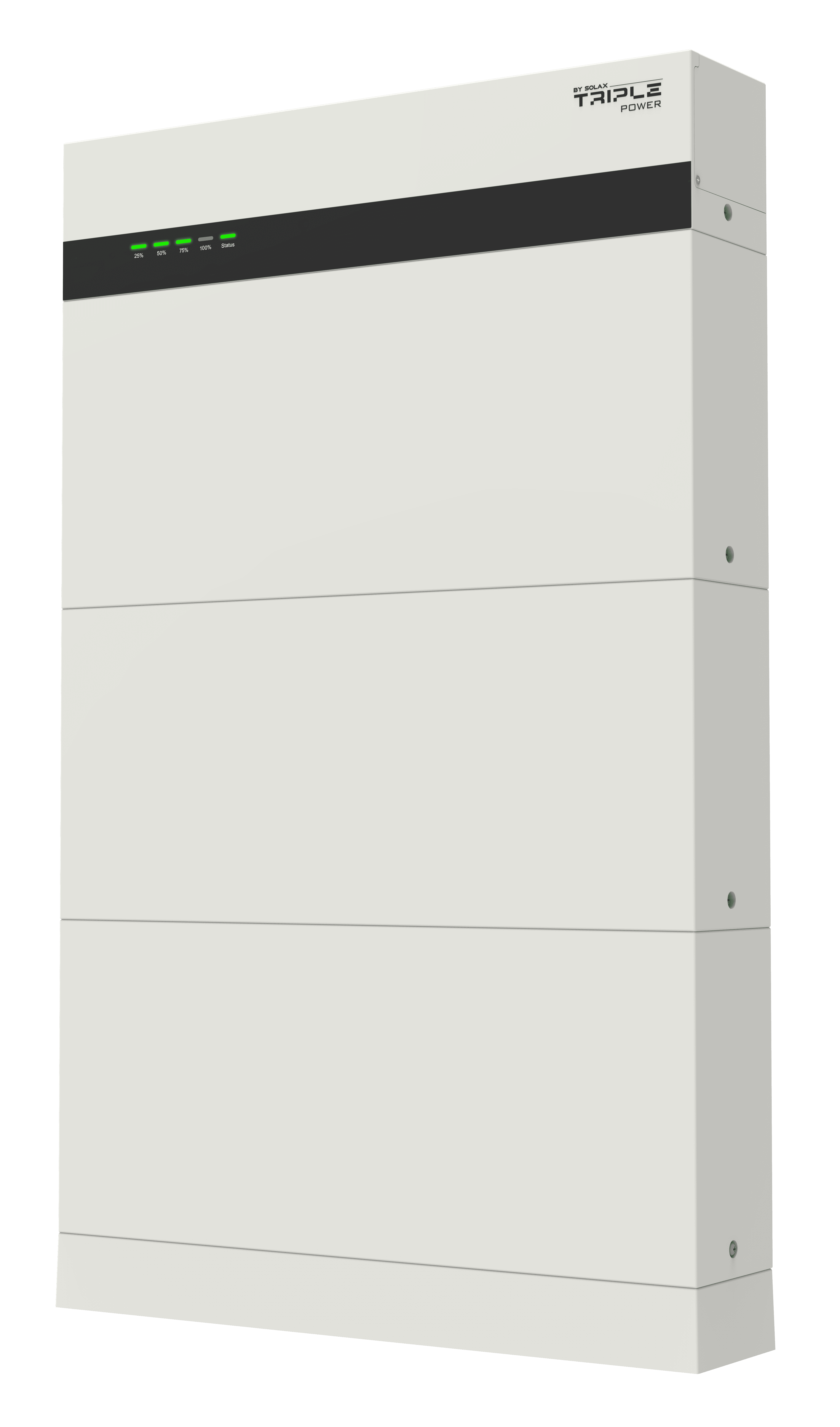

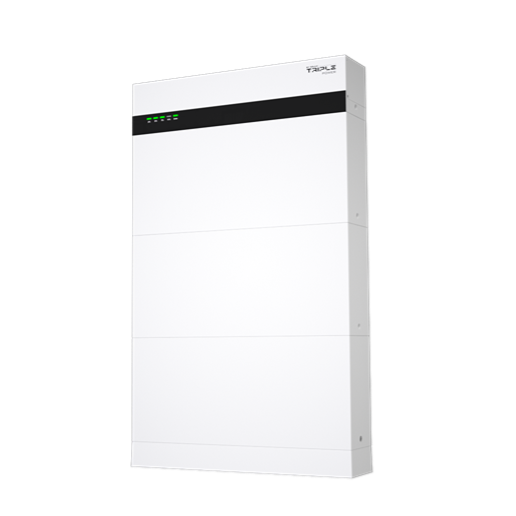

බැටරිය
HS50E-D
-
5.1 kWh-92.1 kWh
HS50E-D බැටරිය 5.12 kWh සිට 92.16 kWh දක්වා හැඩගැස්විය හැකි ධාරිතාවයක් සහිත මොඩියුලාර් සැලැස්මක් දරයි, විකසනය වන ශක්ති අවශ්යතා සඳහා ඉතා සුදුසුය. තරමෙන්ම සැහැල්ලු සහ සංක්ෂිප්ත මෙය බිත්ති සහ තට්ටු ස්ථාපනය සඳහා සහය දක්වයි, සහ SolaX single සහ threephase ඉන්වර්ටර් සමඟ අනුකූලවයි, විශාල ස්ථාපන හැකියාවක් ලබා දෙයි.
නිෂ්පාදන වාසිය
HS50E-D 50A ආරෝපණ/විසර්ජන ධාරාවට සහය දක්වන අතර, -30°C සිට 53°C දක්වා අධික උෂ්ණත්ව පරාසයක ක්රියා කරයි. IP66 ශ්රේණිගත ආරක්ෂාව, කොබෝල්ට් රහිත LFP බැටරිය, සහ නවීන A ක්රියාත්මක SOC/SOH ඇල්ගොරිතම මඟින්, මෙය බුද්ධිමත් කළමනාකරණය සහ OTA යාවත්කාලීන සමඟ දිගුකාලීන ශක්ති ගබඩා විසඳුමක් සපයයි.
Easy Installation & Compatibility
Lightweight, compact, and easy to set up
Available in wall-mounted or floor-mounted options
Fit a wide range of SolaX single and three-phase inverters
High Performance
Max. 50A charge/discharge current
-30°C to 53°C operational range with advanced heating technology
Higher SOC/SOH accuracy through AI battery model algorithms
Automotive-grade cell sampling chips for superior stability and safety
Safety & Reliability
Certified IP66 for outstanding protection
Cobalt-free LFP battery: safe, long-lasting, efficient, high energy density
A robust cycle life of over 6,000 times, ensuring longevity and reliability
Flexibility
Modular design, flexible expansion
Start with 5.12kWh, expand up to 92.16kWh
නිෂ්පාදන පරාමිතීන්
-
T-BAT HS 5-
SYSTEM SPECIFICATION
Number of modules 1 Module Norminal capacity [kWh] 5.1 Nominal voltage [V] 102.4 Standard power [kW] 3
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*558 -
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
-
T-BAT HS 10
-
SYSTEM SPECIFICATION
Number of modules 2 Module Norminal capacity [kWh] 10.2 Nominal voltage [V] 204.8 Standard power [kW] 6.1
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*876 -
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
-
T-BAT HS 15
-
SYSTEM SPECIFICATION
Number of modules 3 Module Norminal capacity [kWh] 15.3 Nominal voltage [V] 307.2 Standard power [kW] 9.2
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*1194 -
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
-
T-BAT HS 20
-
SYSTEM SPECIFICATION
Number of modules 4 Modules Norminal capacity [kWh] 20.4 Nominal voltage [V] 409.6 Standard power [kW] 12.2
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*1194
730*150*491
-
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
-
T-BAT HS 25
-
SYSTEM SPECIFICATION
Number of modules 5 Modules Norminal capacity [kWh] 25.6 Nominal voltage [V] 512 Standard power [kW] 15.3
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*1194
730*150*809
-
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
-
T-BAT HS 30
-
SYSTEM SPECIFICATION
Number of modules 6 Modules Norminal capacity [kWh] 30.7 Nominal voltage [V] 614.4 Standard power [kW] 18.4
Max. charge/discharge current (A) 50 Dimensions (L × W × H) [mm] 730*150*1194
730*150*1127
-
GENERAL
BMS Dimensions (L × W × H) [mm] 730*150*165 BMS Weight [kg] 9.7 Battery type Li-ion (LFP) Battery module [kWh] 5.1 Battery module dimensions (L × W × H) [mm] 730*150*318 Battery module weight [kg] 47 -
ENVIRONMENTAL REQUIREMENTS
Environment Outdoor / Indoor (*Please refer to the user manual for installation condition) Protection degree IP66
-
